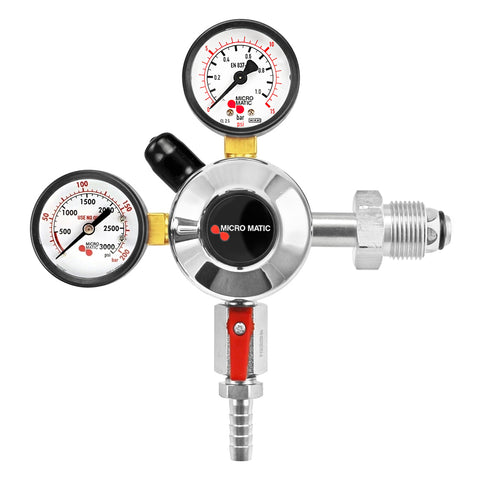

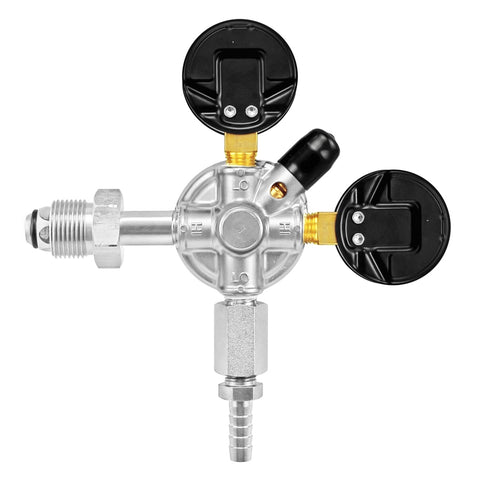

Micro Matic 1-Way Primary Low Pressure Nitrogen Regulator (15 PSI, 3000 PSI) - Premium Plus Series
This regulator is part of the Micro Matic Premium Plus Series and is designed to regulate low-pressure nitrogen flow. It is equipped with a safety system that activates when the pressure reaches 55 - 65 PSI, ensuring safe operation.
The regulator features a low-pressure gauge with a range of 0 - 15 PSI. Made with a Chrome-Plated Brass body, this regulator is durable and reliable. It is meant to be connected directly to your nitrogen tank, as is typical with primary regulators.
Warning from Micro Matic:
Only use in a gas blender or nitrogen generator application!
Specifications:
- To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG.
- Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2 and Nitrogen.
- Nickel plated valve seat for higher corrosion resistance
- Sintered bronze mesh inlet filter
- Built in CO2 resistant solid nylon inlet seal
- CGA580 Inlet (Left hand thread)
- Body parts are 1/4" NPT
- 3/8" OD barbed gas shut-off valve (Right hand thread)
- Working Pressure Range 0 - 15 PSI
- Front loading seat assembly is easily replaceable in the field
- 0-15 PSI low pressure gauge (Right Hand Thread)
- 0-3000 PSI high pressure gauge (Left Hand Thread)
Dimensions:
- 7 1/2" Wide
- 7 1/4" Tall
