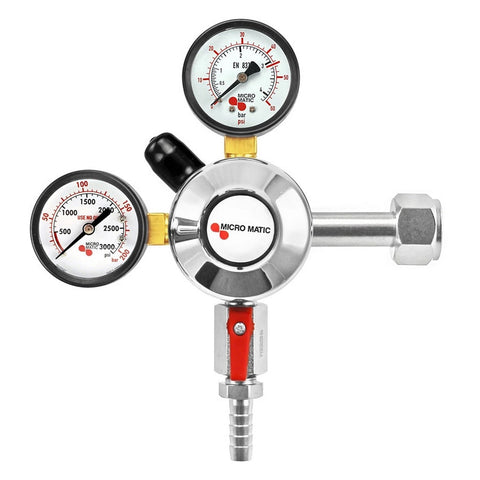

Micro Matic Premium Plus Primary CO2 Regulator (60 & 3000 PSI) [842-PP]

Here we have a Micro Matic regulator with two gauges that accurately display pressure readings up to 60 and 3000 PSI. And for added safety, the pressure relief mechanism activates at an optimal range of 55 to 65 PSI.

Crafted with precision, this regulator features a stylish chrome plated brass body that exudes durability and sophistication.

Designed with convenience in mind, the outlet of this regulator is equipped with a practical shut-off valve that boasts a 3/8" OD barb. Additionally, the inlet is compatible with the widely used CGA320 standard. Embrace the ease and reliability of the Primary CO2 regulator from Micro Matic.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2
• Nickel plated valve seat for higher corrosion resistance
• Sintered bronze mesh inlet filter
• Built in CO2 resistant solid nylon inlet seal
• CGA320 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• 3/8" OD barbed gas shut-off valve (Right hand thread)
• Working Pressure Range 0 - 50 PSI
• Front loading seat assembly is easily replaceable in the field
• 0-60 PSI low pressure gauge (Right Hand Thread)
• 0-3000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 7 1/2" Wide
• 7 1/4" Tall
