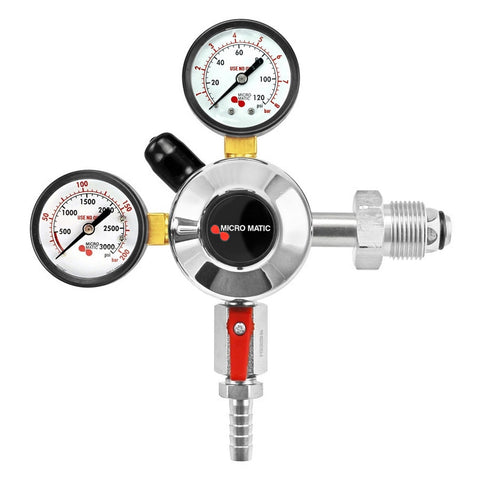

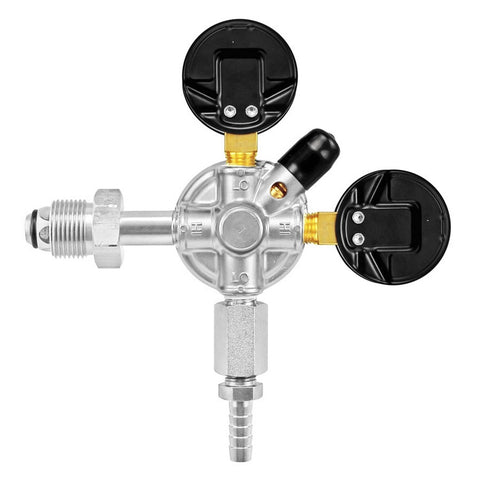

Micro Matic 1-Way Primary High Pressure Nitrogen Regulator (120 PSI, 3000 PSI) - Premium Plus Series
Here is a 1-Way, High-Pressure Nitrogen Regulator from the Premium Plus Series has been approved and authorized for usage by all major breweries. It is equipped with two gauges, measuring pressure ranges of 0 - 120 PSI and 0 - 3000 PSI. Crafted from durable chrome-plated brass, its body features a CGA580 inlet. Additionally, it has a safety mechanism in place, triggering a shut down when pressure levels reach 115 to 125 PSI.
Warning from Micro Matic:
Only use in a gas blender or nitrogen generator application!
Specifications:
- To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 115-125 PSIG.
- Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2 and Nitrogen.
- Nickel plated valve seat for higher corrosion resistance
- Sintered bronze mesh inlet filter
- Built in CO2 resistant solid nylon inlet seal
- CGA580 Inlet (Left hand thread)
- Body parts are 1/4" NPT
- 3/8" OD barbed gas shut-off valve (Right hand thread)
- Working Pressure Range 0 - 120 PSI
- Front loading seat assembly is easily replaceable in the field
- 0-120 PSI low pressure gauge (Right Hand Thread)
- 0-3000 PSI high pressure gauge (Left Hand Thread)
Dimensions:
- 7 1/2" Wide
- 7 1/4" Tall
