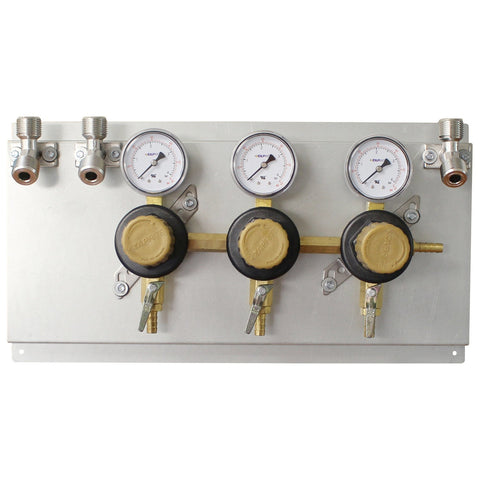

Taprite Secondary Wall Mounting Triple Product Regulator w/ Beer Line Connectors (60 psi) #T1683STWMK

Expand your system effortlessly with this secondary regulator, equipped with a sleek stainless steel wall mount and fittings designed to securely accommodate your beverage lines. Enjoy the convenience of independently controlling the pressures of three additional kegs.

Featuring a 5/16" inlet and two 5/16" outlets equipped with reliable check valves, this regulator offers seamless integration into your setup.

Experience optimal performance with a working pressure range of 0 to 50 psi, while the gauges effortlessly display readings from 0 to 60 psi. Safety is our priority, as evidenced by the built-in pressure relief mechanism preset at 55 to 65 psig, effectively preventing any hazardous malfunctions.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG.
• Taprite secondary regulators are designed to further reduce pressure from a primary regulator to a proper dispensing level.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up.
• Body parts are 1/4" NPT (Right hand thread)
• 5/16" barbed inlet designed for 5/16" I.D. pressure tubing.
• Left side has a 1/4" NPT plug
• Working pressure range is 0-50psi.
• Front loading seat assembly is easily replaceable in the field
• 60psi Gauges
• Stainless Steel 18-gauge galvanized metal wall mount with 1/8" mounting holes.
• Mount has three 1/2" Male NPT connections for use with beverage lines.

Wall Mount Dimensions: 1

• 6" x 8 1/2"
