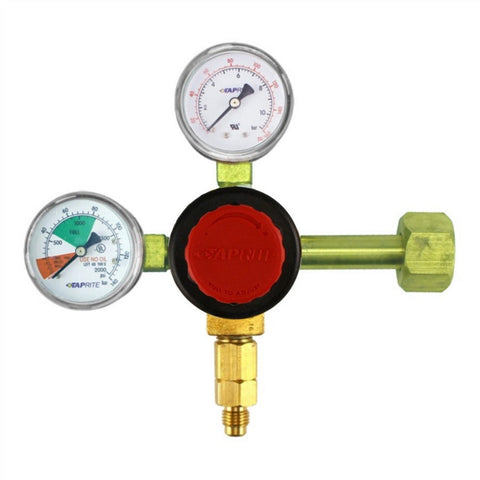

Taprite Primary High Pressure Soda Regulator (160 & 2000 PSI) [T5741PMHP]
The Soda Regulator regulator by Taprite, featuring a CGA320 inlet (left-hand thread) and a 1/4" MFL outlet for optimal functionality features accurate gauges with a range of 0 - 160 PSI and 0 - 2000 PSI, providing precise pressure monitoring for your convenience. The working pressure is carefully designed to operate within the 0 to 120 PSI range, ensuring efficient performance.
Crafted with a durable forged Brass body and a polycarbonate bonnet, this regulator guarantees long-lasting reliability and endurance.
Specifications:
- To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-134 PSIG.
- Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
- Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Co2.
- Polycorbonate Bonnet
- Red Cap
- CGA320 Inlet (Left hand thread)
- Body parts are 1/4" NPT
- 1/4" male flared outlet (Right hand thread)
- Working Pressure Range 0-120PSI
- Non-removable adjusting screw limits maximum delivery pressure to 50 PSIG
- Front loading seat assembly is easily replaceable in the field.
- 0-160 PSI high pressure gauge (Right Hand Thread)
- 0-2000 PSI high pressure gauge (Left Hand Thread)
Dimensions:
- 7 5/8" Wide
- 7 1/2" Tall
