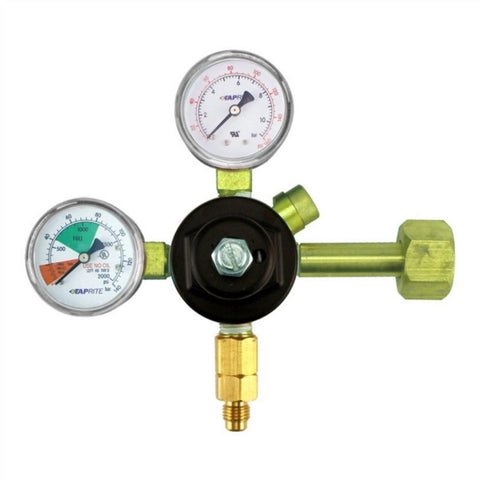

Taprite Primary High Pressure CO2 Regulator (160 & 2000 PSI) [3741]

Introducing the Taprite high-pressure CO2 regulator boasting a CGA320 inlet and 1/4" MFL outlet.

Take note of the gauges, indicating a pressure reading of 160 PSI and 2000 PSI, with a working pressure range spanning from 0 to 120 PSI. This exceptional regulator comes equipped with a built-in safety pressure relief valve, expertly calibrated to vent pressure between the optimal range of 126 and 134 PSI.

Crafted from forged Brass, this regulator showcases remarkable durability, complemented by a bonnet made of resilient polycarbonate material.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-130 PSIG.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Co2.
• Durable Zinc Bonnet will not strip or break like polycorbonate (plastic)
• CGA320 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• 1/4" male flared outlet (Right hand thread)
• Working Pressure Range 0-120 PSI
• Front loading seat assembly is easily replaceable in the field.
• 0-160 PSI high pressure gauge (Right Hand Thread)
• 0-2000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 7 5/8" Wide
• 7 1/2" Tall
