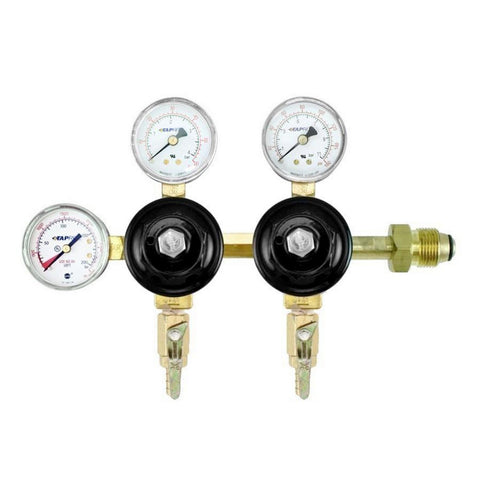

Taprite Primary Dual High Pressure Nitrogen Regulator (60, 160, & 3000 PSI) [5752HPN-03]

This particular nitrogen regulator is designed to handle high pressures and is suitable for use with up to two kegs.

Featuring a CGA580 inlet, this regulator also boasts two 5/16" barbed outlet valves equipped with checks to ensure that backflow is prevented.

Equipped with gauges that accurately display pressure readings of 60, 160, and 3000 PSI, this regulator also comes with a built-in pressure relief valve that is set to a safe range of 126 to 134 PSI.

For enhanced durability, the bodies of this regulator are expertly crafted from forged brass, while the bonnets are composed of zinc to withstand the demands of high pressures.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 125-130 PSIG.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Nitrogen, and Argon, and blended Beer gas.
• Durable Zinc Bonnet will not strip or break like polycorbonate (plastic)
• CGA580 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• 5/16" barbed valves with check (Right hand thread)
• Working Pressure Range 0-120 PSI
• Front loading seat assembly is easily replaceable in the field
• 0-60 PSI low pressure gauge (Right Hand Thread)
• 0-160 PSI high pressure gauge (Right Hand Thread)
• 0-3000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 10 3/4" Wide
• 7 1/2" Tall
