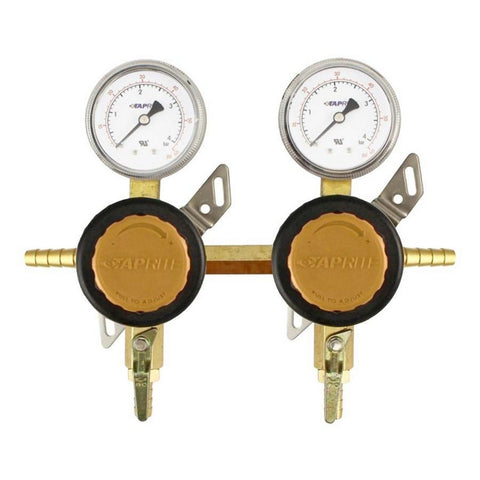

Taprite Secondary Pass-Thru Dual CO2 Regulator (60 PSI) [T1672ST-2N]

The Taprite secondary pass-thru regulator is equipped with 5/16" barbs on both the inlet and outlets, ensuring a secure and efficient connection.

With a gauge range of up to 60 PSI, this regulator keeps you well-informed of the pressure levels, complemented by a pressure relief valve expertly set at a range of 55 to 60 PSIG.

Boasting robust brass bodies and durable polycarbonate bonnets, this regulator is built to withstand rigorous usage and provide long-lasting performance.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-60 PSIG.
• Taprite secondary regulators are designed to further reduce pressure from a primary regulator to a proper dispensing level.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Co2
• Pass-Thru design allows full pass-thru through the body
• Polycorbonate Bonnet
• 5/16" OD barbed inlet (Right hand thread)
• Body parts are 1/4" NPT (Right hand thread)
• 5/16" OD barbed shut-off valve outlets (Right hand thread)
• Working Pressure Range 0-50 PSI
• Front loading seat assembly is easily replaceable in the field
• Comes with wall mounting brackets
• 0-60 PSI low pressure gauges (Right Hand Thread)
