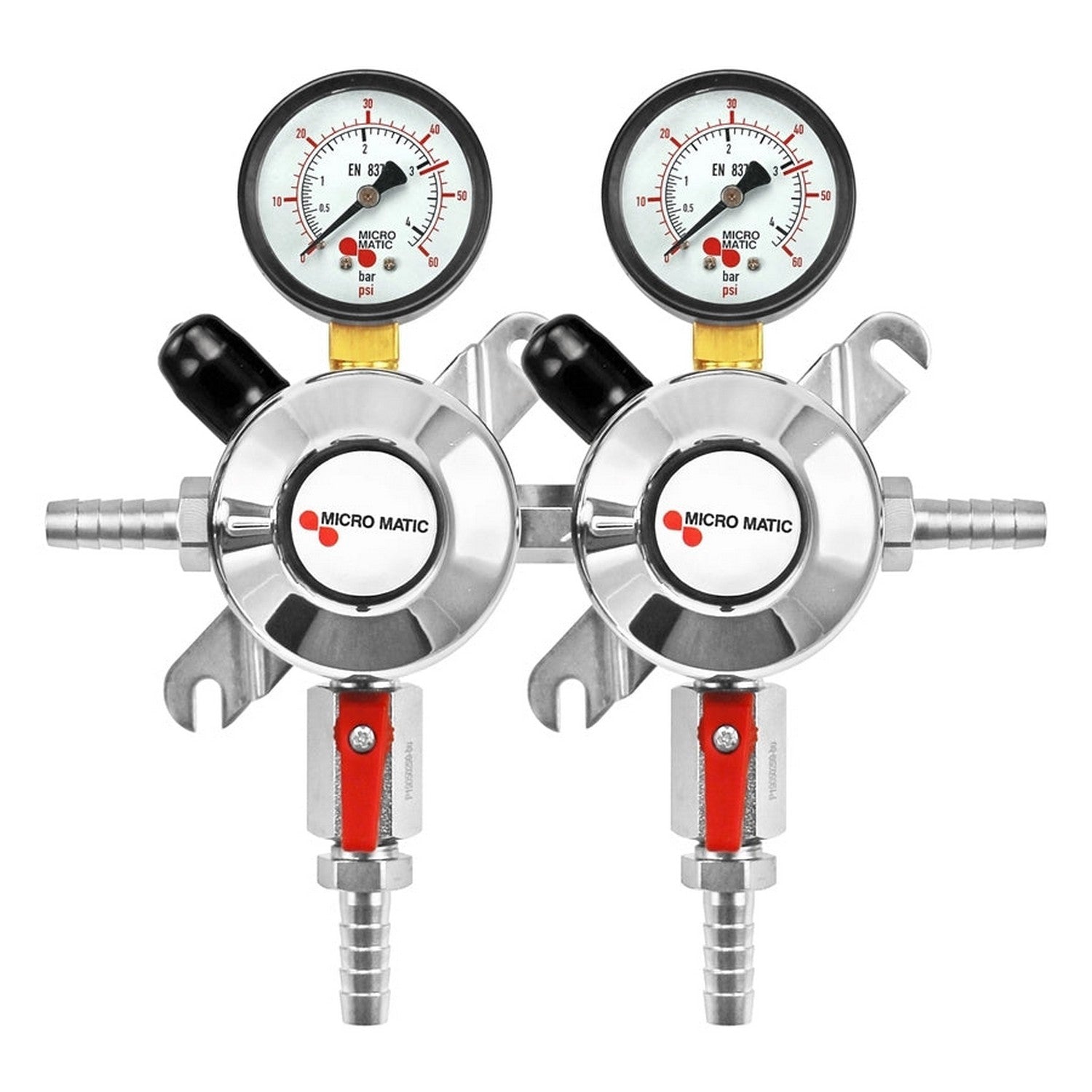

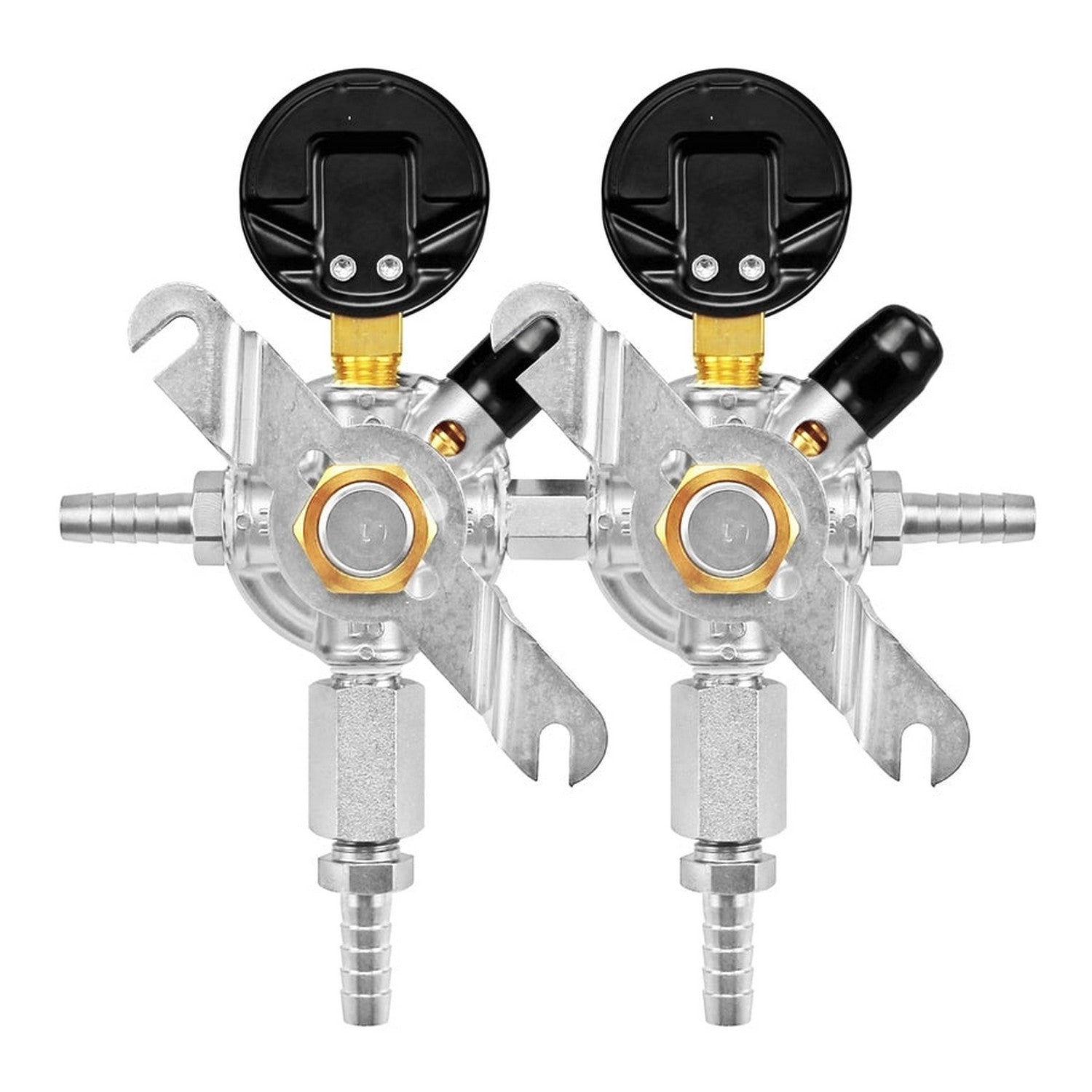

Micro Matic Premium Plus Secondary Double CO2 Regulator (60 PSI) [1162]

An excellent secondary CO2 regulator by Micro Matic, designed for dual output functionality.

Featuring highly accurate gauges that can measure pressure up to 60 PSI, and equipped with a safety release mechanism preset between 55 and 65 PSI.

Crafted with robust bodies made of chrome plated brass, this regulator ensures long-lasting durability. Additionally, it includes convenient built-in wall mounting brackets for easy installation.

The inlet of this regulator is a 3/8" OD barb, while the outlets are furnished with 3/8" OD barbed shut-off valves, allowing for seamless connectivity.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG.
• Secondary regulators are designed to further reduce pressure from a primary regulator to a proper dispensing level.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2
• Flow control inlet filter
• Nickel plated valve seat for higher corrosion resistance
• 3/8" OD barbed inlet (Right hand thread)
• Body parts are 1/4" NPT (Right hand thread)
• 3/8" OD barbed gas shut-off valves (Right hand thread)
• Working Pressure Range 0 - 50 PSI
• Front loading seat assembly is easily replaceable in the field
• Comes with wall mounting brackets
• Includes additional 1/4" Male NPT Hex Plug
• 0-60 PSI low pressure gauges (Right Hand Thread)

Dimensions:

• 8" Wide
• 7 1/2" Tall
