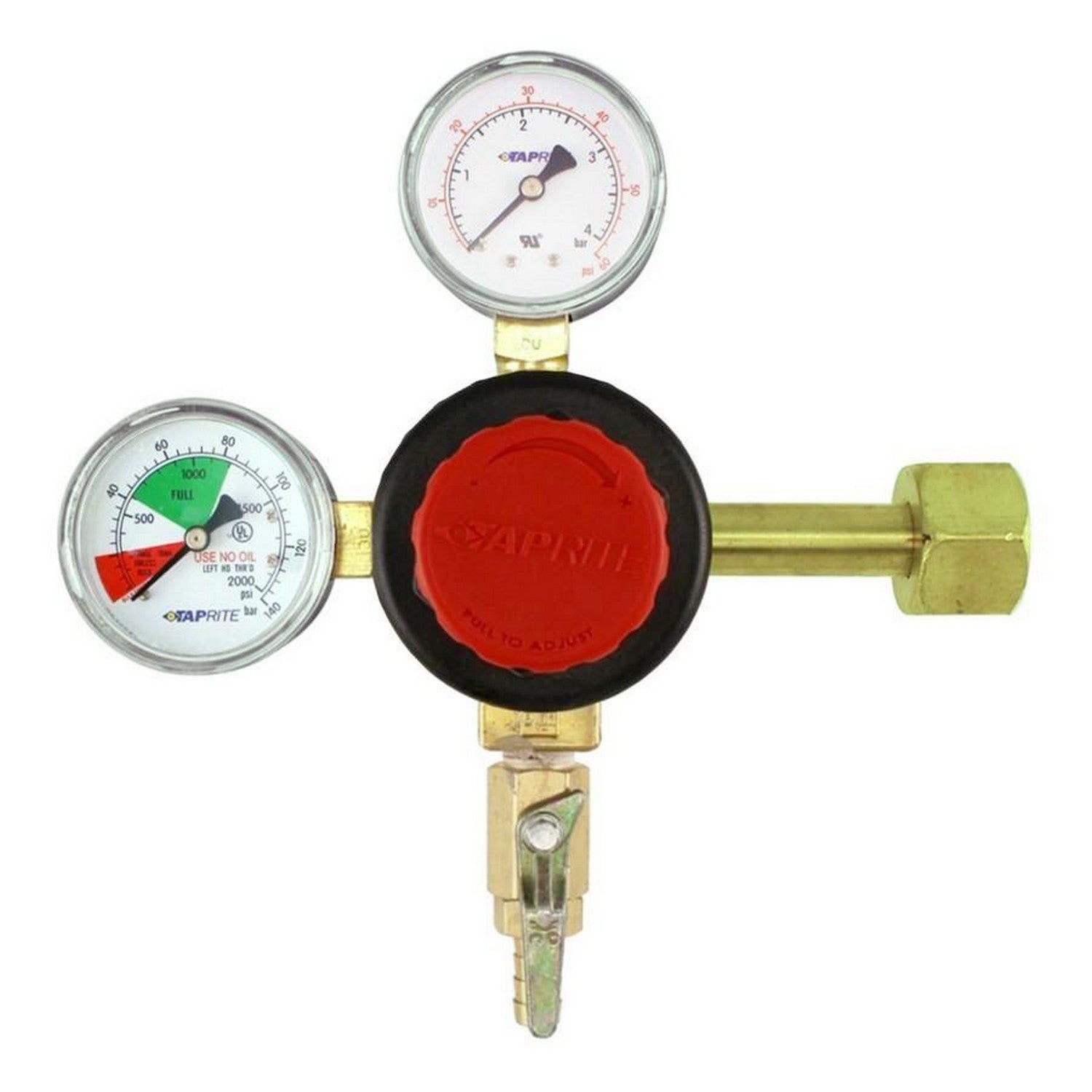

Taprite Primary CO2 Regulator w/ Poly Bonnet (60 & 2000 PSI) [T742HP]

Featuring gauges with a maximum range of 60 PSI (out) and 2000 PSI (in), this primary CO2 regulator by Taprite comes with CGA320 (in) and 5/16" Barb (out) connections. Safeguarding against backflow, this regulator is equipped with a check valve.

Boasting a polycarbonate bonnet and a safety pressure relief valve set at 55 - 60PSIG, this regulator provides a working pressure range of 0 to 50 PSI.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-60 PSIG.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Co2.
• Polycorbonate Bonnet
• CGA320 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• 5/16" OD barbed shut-off valve with check (Right hand thread)
• Working Pressure Range 0-50 PSI
• Front loading seat assembly is easily replaceable in the field.
• 0-60 PSI low pressure gauge (Right Hand Thread)
• 0-2000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 7 5/8" Wide
• 7 1/2" Tall
